產品介紹
Alliance Bio Expertise
MEDIAWEL系列
MEDIAWEL 50 大容量系列
![MEDIAWEL 50 大容量系列 MEDIAWEL 50 大容量系列](http://www.tpm-tpm.com.tw/products/ABE-MEDIAWEL-50-800x600.jpg) |
產品說明: 50 大容量系列
MEDIAWEL 50,獲得專利的大攪拌棒確保整個批次具有高粘度,並且額外的內置預過濾器可防止污染。此外,這種預過濾器可以防止更昂貴的主過濾器堵塞,因此是一種具有成本效益的功能。 |
產品名稱 : MEDIAWEL 50 大容量系列 |

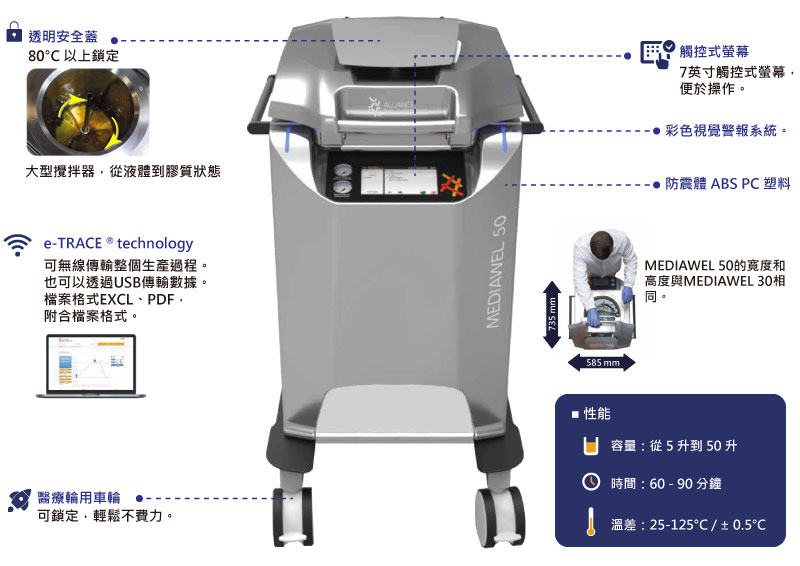

■ 特色介紹 |
![](/userfiles/tpm//images/MEDIAWEL-50_%E5%8A%9F%E8%83%BD%E8%AA%AA%E6%98%8E.jpg) |
■ |
產品規格說明 |
|
|
Capacity |
From 5 to 50 liters |
|
Sterilization temperature |
From 25°C to 125°C |
|
Sterilization time |
From 1 to 99 min |
|
Distribution temperature |
From 25°C to 80°C |
|
Temperature accuracy |
+/- 0.5°C after temperature stabilization |
|
Remaining volume |
<130ml |
|
Adding cap |
✓ |
|
Traceability |
Integrated eTRACE module, USB export of PDF/CSV files |
|
WIFI/Ethernet traceability |
Labpage, dashboard. Real time data monitoring, data storage on SD card (up to 10 000 cycles) |
|
Temperature probe |
3 probes (1 standard, 1 in option and 1 for calibration) |
|
Safety pressure release |
1.7 bar safety valve |
|
Dispensing port |
Adapters for tubes of 6.4 mm / 12 mm |
|
Continuous homogenization |
✓ |
|
Touchscreen |
Tactile, LCD 7'' |
|
Alarm |
Multicolored visual and audible alarm |
|
Cleaning |
Bottom drainage / cleaning evacuation |
|
Mobility |
Stable and easy to move : 4 large medical wheels with brakes |
|
Robustness |
Antishock body (ABS PC PLASTIC) |
|
Vessel |
Stainless steel AISI 316L |
|
Programs |
50 |
|
Weight |
178kg |
|
Dimensions (L x l x H) |
735 x 585 x 1073 |
|
Power supply |
MEDW1050 : 400V +/- 10%, three-phase (31A max per phase), 50/60 Hz, 18700W +/- 10%
MEDW1051 : 208V +/- 10%, three-phase (46A max per phase), 50/60 Hz, 14500W +/- 10%
(for 110/120V countries only, such as US, Canada, Central America) |
